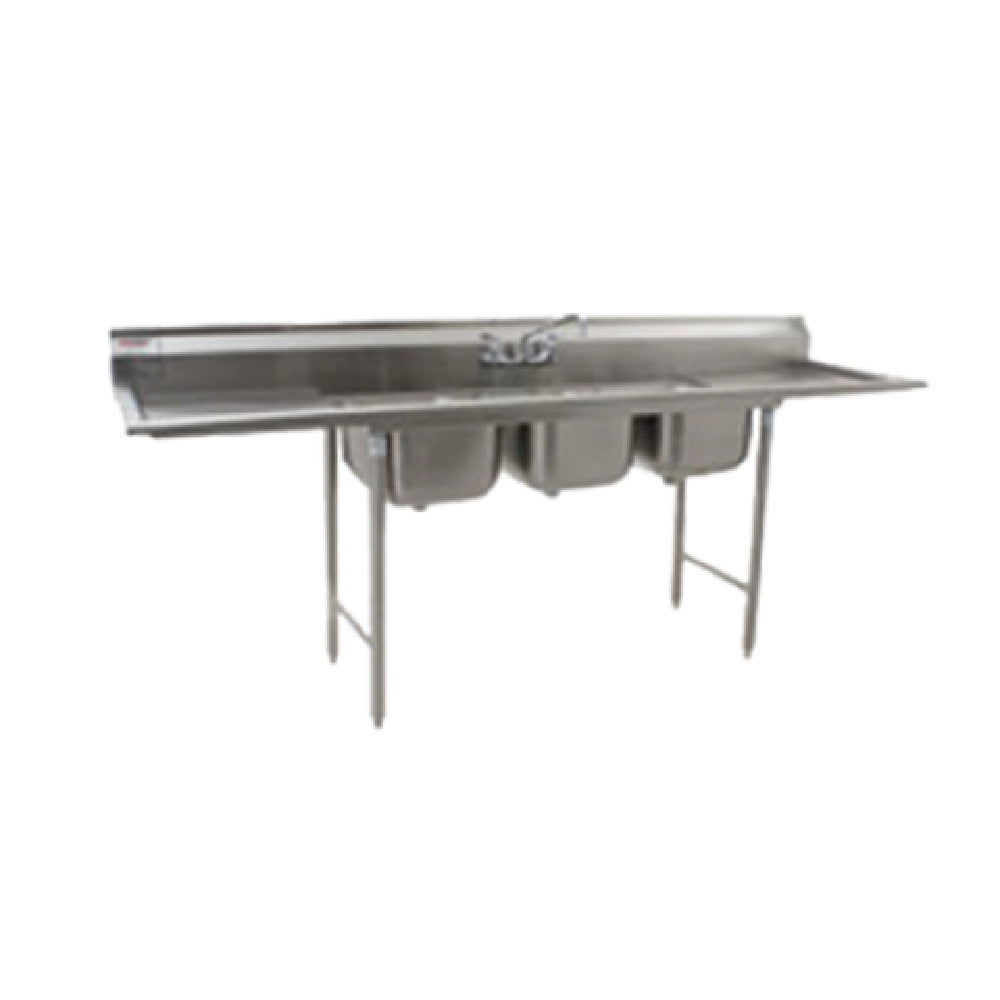

Eagle 412-16-3-18-X 412 Series Sink Three Compartment 90"W X 27-1/2"D
Eagle 412-16-3-18-X 412 Series Sink Three Compartment 90"W X 27-1/2"D
SKU: 412-16-3-18-X
Quantity
Couldn't load pickup availability
Eagle Group, 412-16-3-18-X, 412 Series Sink, three compartment, 90"W x 27-1/2"D, 430 stainless steel construction, 16" wide x 20" front-to-back x 10-1/2" deep compartments, 18" drainboards on left & right, 9-1/2"H backsplash with 1" upturn & tile edge, 8" OC splash mount faucet holes, 2" euro-style edge on front & sides, includes (3) 3-1/2" basket drains, galvanized legs & side crossbracing, adjustable plastic bullet feet, NSF (FLYER)
Specification
| Manufacturer | Eagle Group |
| Model Number | 412-16-3-18-X |
| Manufacturer Part # | 412-16-3-18-X |
| Compartment Width (side - side) | 16" |
| Base Type | Legs With Side Crossrails |
| Base Construction | Galvanized |
| Top Stainless Series | 400 Series |
| Top Gauge | Gauge Unspecified |
| Drainboards | With Left & Right-hand Drainboards |
| Splash Height | 9-1/2" |
| Overall Length | 85" - 96" |
| Sink Depth (rim - drain) | 10-1/2" |
| Compartment (front - back) | 20" |
| Height | 44" |
| Width | 90" |
| Depth | 27.5" |
| Weight | 170 lbs |
| NSF | Yes |
