LSI

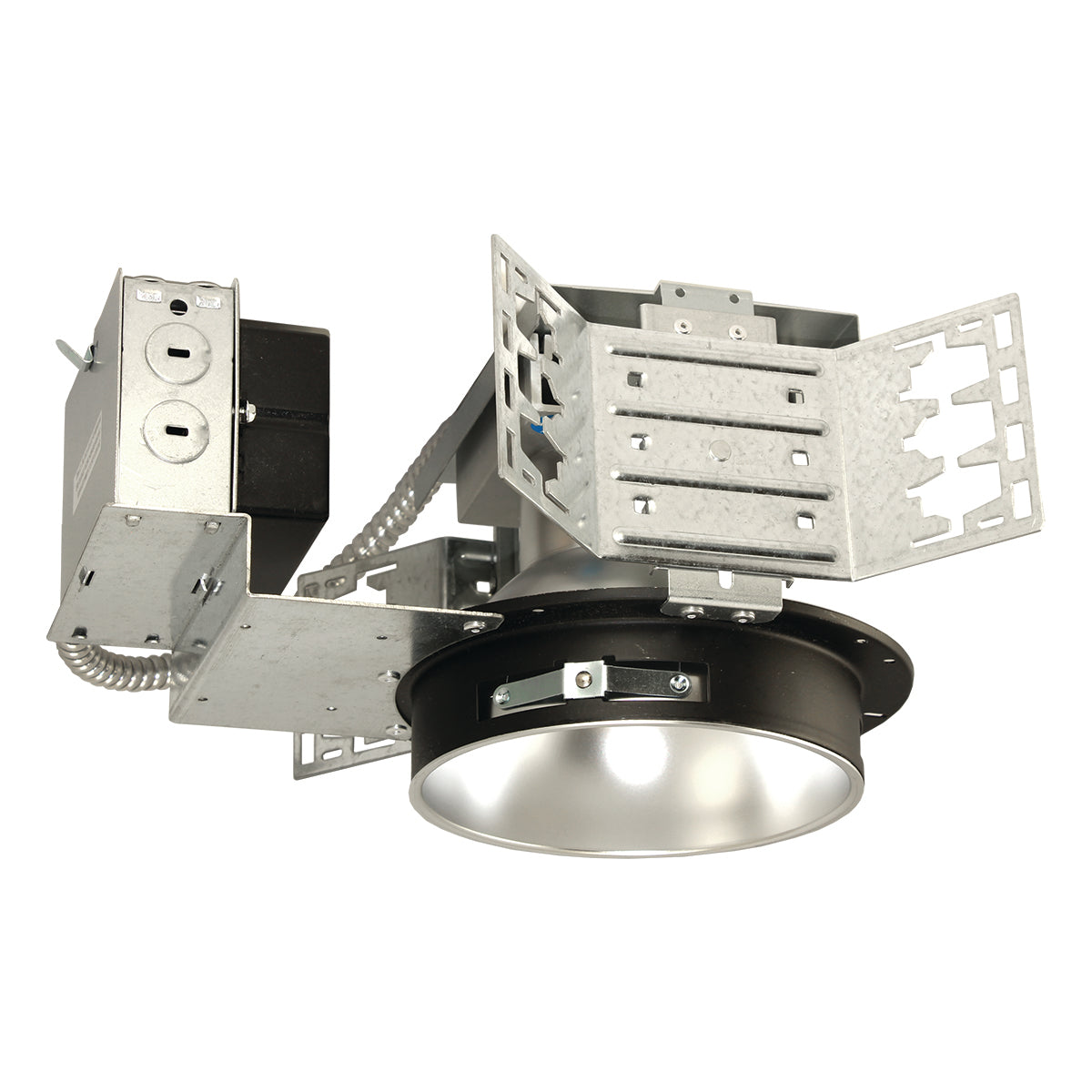

Architectural New Construction Downlight
Architectural New Construction Downlight
SKU:641506 & 658633CA
Quantity
Couldn't load pickup availability
The LED Architectural new construction downlight series delivers superior performance and energy efficiency. Designed to use anodized aluminum reflectors delivering even illumination and low glare, the high performance luminaire offers 1,000 up to 4,250 lumens with color temperatures of 2700K, 3000K, 3500K and 4000K at 80 CRI min. Standard driver offers universal input voltage (120-277V) and 0-10V dimming down to 1%. Four different light distributions are available for the LAD making it highly versatile. The LAD series is ideal for retail, hospitality and commercial applications.
Specification
| LOCATION/APPLICATION | INTERIOR C-STORE DOWNLIGHT |
| Category | Lighting |
| Size/Length | 6-inch |
| LSI ITEM # | 641506 |
| ORDERING LOGIC (CATALOG NUMBER) | LAD6 LED 25L UNV DIM1 40 WF TR6R HAZ |
| Lumen Output | 2500 |
| Distribution | Wide Flood |
| Voltage | 120-277VAC |
| Finish | Metallic Silver |
| Integral Controls | No |
| Integral EM Battery | No |
